纳升电动灌注系统 Nanoliter 2010
Nanoliter 2010 纳升电动灌注系统采用了全新的触摸屏微电脑控制器SMARTouch™，通过触按屏幕上的灌注按钮或者踩下可选的脚踏开关，就可以轻松便捷地进行注射
全国热线400-160-1598
在线咨询

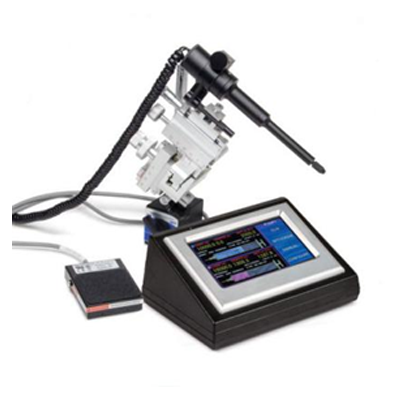

纳升电动灌注系统
Nanoliter 2010
产品概述
Nanoliter 2010 纳升电动灌注系统采用了全新的触摸屏微电脑控制器SMARTouch™，通过触按屏幕上的灌注按钮或者踩下可选的脚踏开关，就可以轻松便捷地进行注射，最大的注射体积为4.5微升，匹配专门用于纳升电动灌注系统的玻璃微电极，最小的灌注体积可以达到0.1纳升，最小的灌注速度可以达到每分钟1.6纳升。
产品特征
● 微处理器控制的注射泵
● 玻璃毛细管内活塞移动注射
● 使用Micro2T SMARTouch™触摸屏控制器
● 可选脚踏开关
产品优势
● 不需要配注射器
● 用图形直观地表示容量状态
● 基于毛细管尖端体积自动计算注射量
● 直观的触摸屏界面
● 精确地控制注射量和注射速率
SMARTouch™触摸屏控制器
高分辨率SMARTouch™触摸屏控制器（型号MICRO2T），提供了一个智能又方便操作的界面，可以同时或者单独控制两个纳升注射泵。

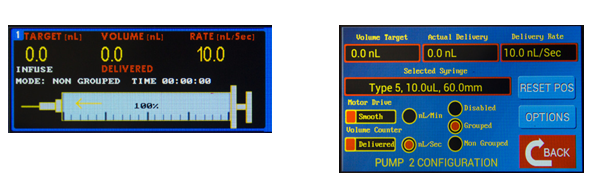

控制屏幕以图形的方式显示了Nanoliter 2010纳升注射泵的注射量和剩余量，以及其它相关的注射参数，比如注射泵的分组状态、目标注射量、容量计数器、注射速度、注射或抽吸模式，已注入的量、注射泵的运行时间等。通过触摸屏，您可以手动或自动地运行注射泵，改变泵的方向，或者访问其它界面。
产品参数
纳升电动灌注系统
| 注射体积 | 可调 |
| 远程控制 | 是 |
| 玻璃管外径 | 1.14 mm |
| 玻璃管内径 | 0.53mm |
| 步进 | 12.7 μm/ 步进 |
| 注射速度 | |
| 最慢 | 1.617 nL/分 |
| 最快 | 1287 nL/秒 |
| 最小体积 | 0.1 nL |
| 最大每个步进注射量 | 4527 nL |
| 运输重量 | 1.1 kg |
参考文献
[1] Identification and functional analysis of chitinase 7 gene in white-backed planthopper, Sogatella furcifera [J].
C Chen et al., Comparative Biochemistry and Physiology. 2017, Part B 208–209 : 19–28.
[2] miR-958 inhibits Toll signaling and Drosomycin expression via direct targeting of Toll and Dif in Drosophila melanogaster [J].
S Li et al., Am J Physiol Cell Physiol. 2017, 312 : C103–C110.
[3] Small RNA-Seq analysis reveals microRNA-regulation of the Imd pathway during Escherichia coli infection in Drosophila [J].
S Li et al., Developmental & Comparative Immunology. 2017, 70 : 80-87.
[4] Cloning and functional characterization of HKT1 and AKT1 genes of Fragaria spp.—Relationship to plant response to salt stress [J].
M Garriga et al., Journal of Plant Physiology. 2017, 210 : 9-17.
[5] Opposing Effects of Maternal Hypo- and Hyperthyroidism on the Stability of Thalamocortical Synapses in the Visual Cortex
of Adult Offspring [J].
MTJ Strobl et al., Cereb Cortex 2017, 27 (5) : 3015-3027.
[6] Sublethal doses of imidacloprid disrupt sexual communication and host finding in a parasitoid wasp [J].
L Tappert et al., Scientific Reports 2017, 7 : 42756.
[7] Development of a photoswitchable antagonist of NMDA receptors [J].
FWW Hartrampf et al., Pharmacology Reports, 2017, 69 : 350-357
[8] Describing the Diapause-Preparatory Proteome of the Beetle Colaphellus bowringi and Identifying Candidates Affecting Lipid
Accumulation Using Isobaric Tags for Mass Spectrometry-Based Proteome Quantification (iTRAQ) [J].
QQ Tan et al., Front. Physiol. 2017, 8 : 251.
[9] Unique Contributions of an Arginine Side Chain to Ligand Recognition in a Glutamate-gated Chloride Channel [J].
T Lynagh et al., The Journal of Biological Chemistry 2017, 292 (9) : 3940–3946
[10] Stream-dependent development of higher visual cortical areas [J].
IT Smith et al., Nat Neurosci. 2017, 20(2) : 200–208.
[11] A selectivity filter at the intracellular end of the acid-sensing ion channel pore [J].
T Lynagh et al., eLife 2017, 6 : e24630.
[12] Cochlear gene therapy with ancestral AAV in adult mice: complete transduction of inner hair cells without cochlear dysfunction [J].
J Suzuki et al., Scientific Reports 2017, 7 : 45524.
[13] Lineage Reprogramming of Astroglial Cells from Different Origins into Distinct Neuronal Subtypes [J].
M Chouchane et al., Stem Cell Reports 2017, 9 : 162–176
[14] Voltage-dependent Ca2+ entry into smooth muscle during contraction promotes endothelium-mediated feedback vasodilation
in arterioles [J].
CJ Garland et al., Sci. Signal. 2017, 10(486) : eaal3806
[15] A Neural Circuit for Auditory Dominance over Visual Perception [J].
YH Song et al., Neuron. 2017, 93 (4) : 940–954
[16] A Single Amino Acid Substitution in the Sodium Transporter HKT1 Associated with Plant Salt Tolerance [J].
A Ali et al., Plant Physiology 2016, 171：2112–2126
[17] A critical role for Piezo2 channels in the mechanotransduction of mouse proprioceptive neurons [J].
D Florezpaz et al., Scientific Reports 2016, 6 : 25923.
产品用途
● 斑马鱼研究的应用：
√ 斑马鱼卵细胞基因或染料的注射
√ 斑马鱼幼鱼体内染料或药物注射
● 昆虫研究的应用：
√ 线虫、蠕虫、果蝇、棉铃虫、褐飞虱等卵细胞注射
√ 线虫、果蝇、棉铃虫、褐飞虱体内药物或染料注射
● 爪蟾卵细胞及幼蟾体内注射
● 啮齿类动物研究应用：
√ 大鼠、小鼠等脑内深部组织的药物或神经递质或染料注射
√ 大鼠及小鼠卵细胞及胚胎基因物质、药物及染料注射
